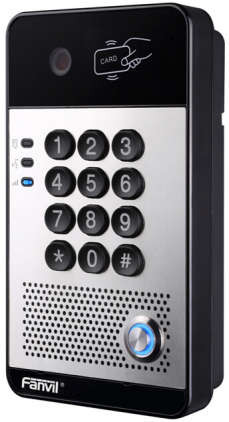

Fanvil i30 SIP Video Door Intercom

i30 SIP Video Door Intercom

The i30 SIP Video Door Intercom uses standard IP / RTP protocol for voice transmission. It is compatible with major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc.
The i30 SIP door intercom is designed for indoor use and the robust construction with an IP65 rating offers protection against dust and water ingress.

Access Control Function

• 2 SIP lines, support SIP 2.0 (RFC3261) and related RFC
• POE or power adaptor
• Full-duplex handsfree (HF)
• Default Auto Answer
• Door release by: DTMF, password, RFID card, remote operator
• Supports 500 RFID cards

Video

• Sensor: 1/4 "colour CMOS
• 1 MegaPixel Camera
• Video codec: H.264
• Resolution: The main stream 1280 *720
• Sub-stream 640*360, 352*288, 32*240
• Viewing angle: 110 ° (H), 95 ° (V)
• Minimum illumination: 1Lux, temporarily, no infrared lighting

Physical Specifications

• 1 Programmable call button
• 4 indicator lights (including hot-key backlit)
• Numeric keypad
• 1 relay: MAX DC30V / 1A, AC125V / 0.5A
• Active switching output: 12V / 700mA DC
• RFID reader: ID (EM4100) standard type
• RFID card number output: positive sequence output 8H10D
• Equipment size: 160x93x35mm

BROCHURE LINK BELOW

https://www.dropbox.com/s/tulhq49507egugx/Fanvil%20Range.pdf?
