Fanvil A12 Audio Intercom with PA Features

Fanvil A12 Audio Intercom with PA Features

3CX Approved

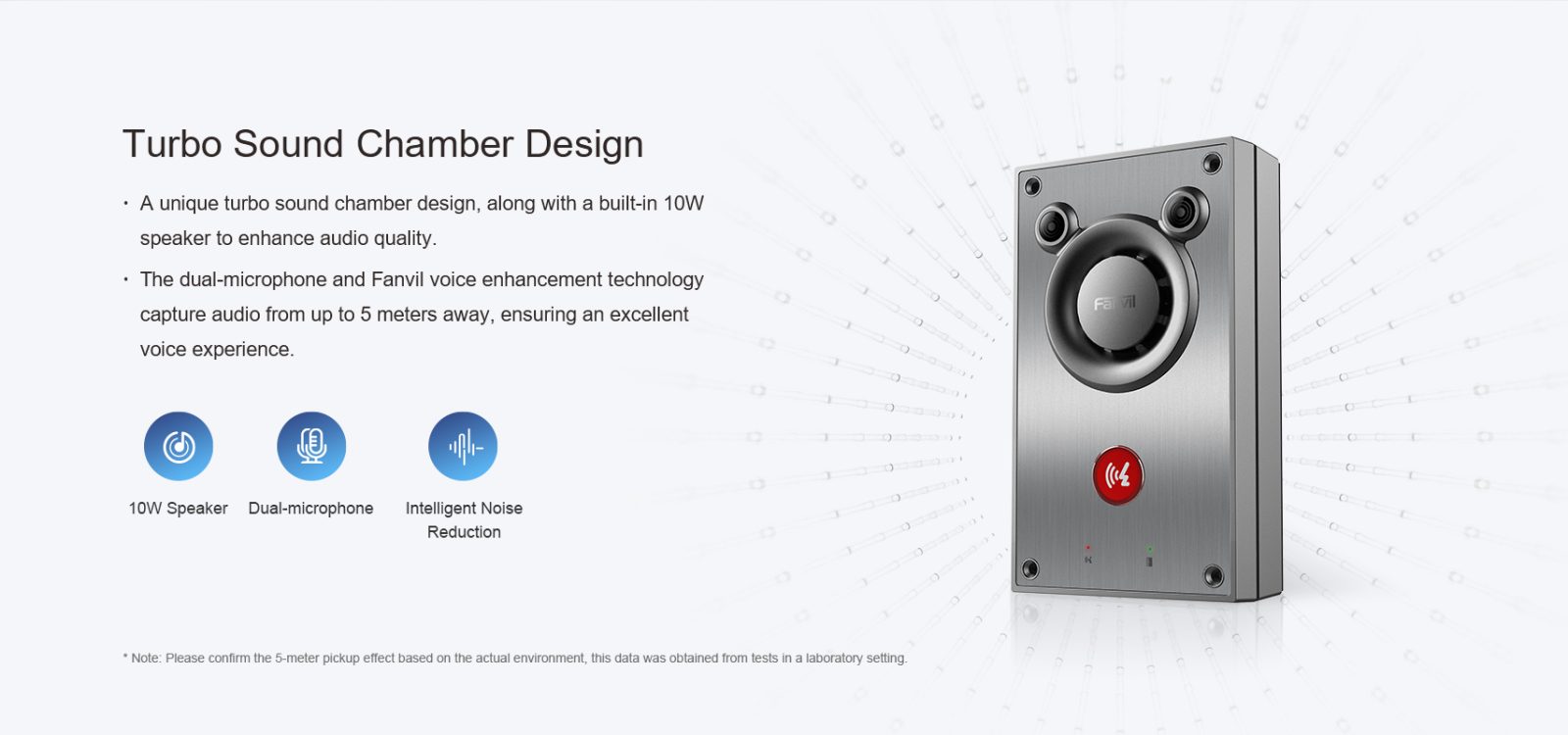

Fanvil A12 audio intercom is a brand-new device featuring a built-in 10W speaker and a unique turbo sound chamber design, delivering impressive audio performance. It utilises Fanvil’s advanced dual-microphone noise reduction technology and voice enhancement algorithms, ensuring clear audio capture even in noisy environments. Additionally, it combines a stainless steel panel with an integrated aluminium alloy structure, making it not only aesthetically pleasing but also corrosion-resistant, and suitable for various harsh environments.

Fanvil A12 Datasheet

Features:

• Excellent sound quality
• Loud sound: 10W speaker, 90dB hands-free call and 100dB broadcast, use as PA as well as intercom
• Remote pickup range of 5 meters and accurately captures every word – background noise cancelling – ideal for carparks busy roads etc.

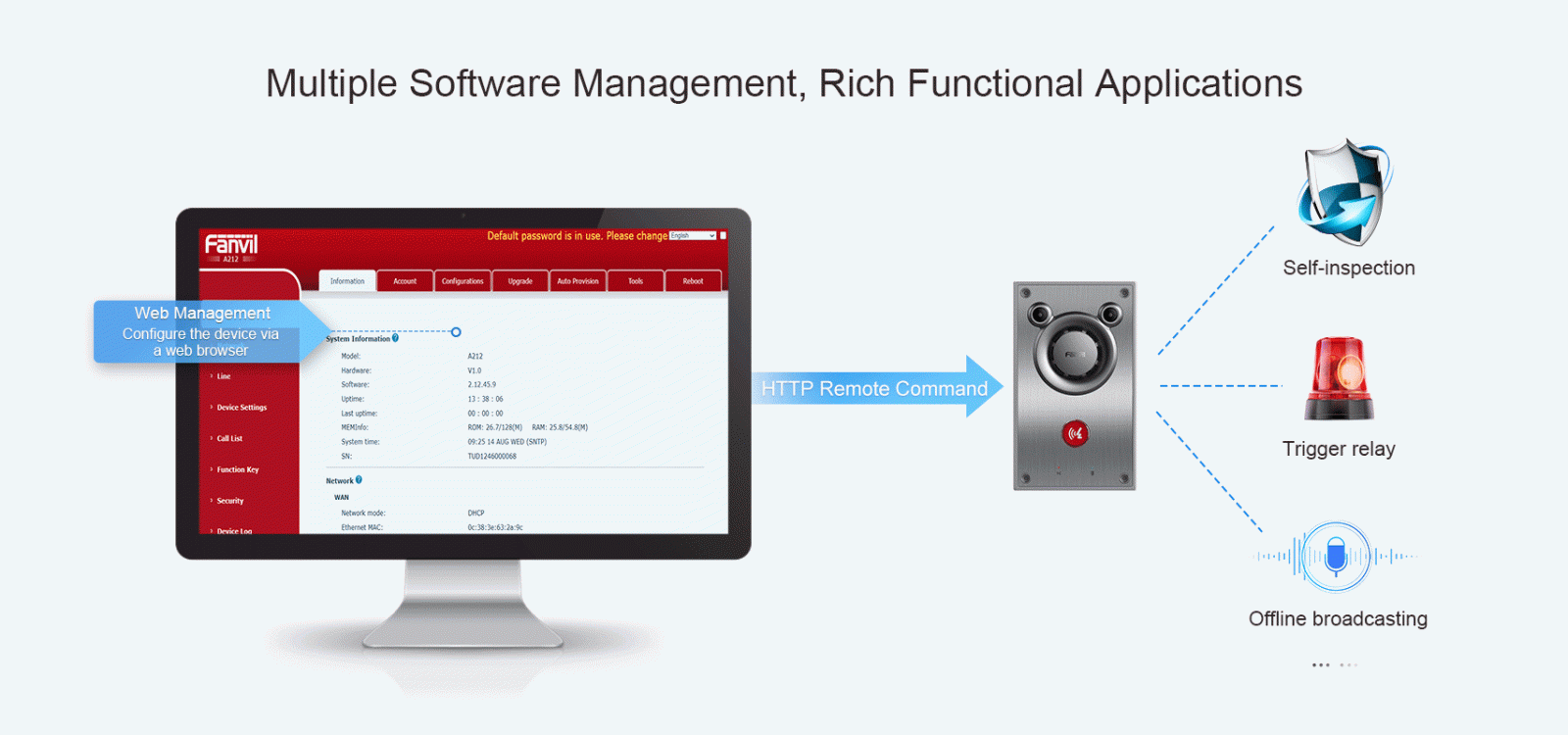

• Self-check function
• Recording broadcast: Built-in SD card slot supports recording and preset broadcast, flexible and diverse.

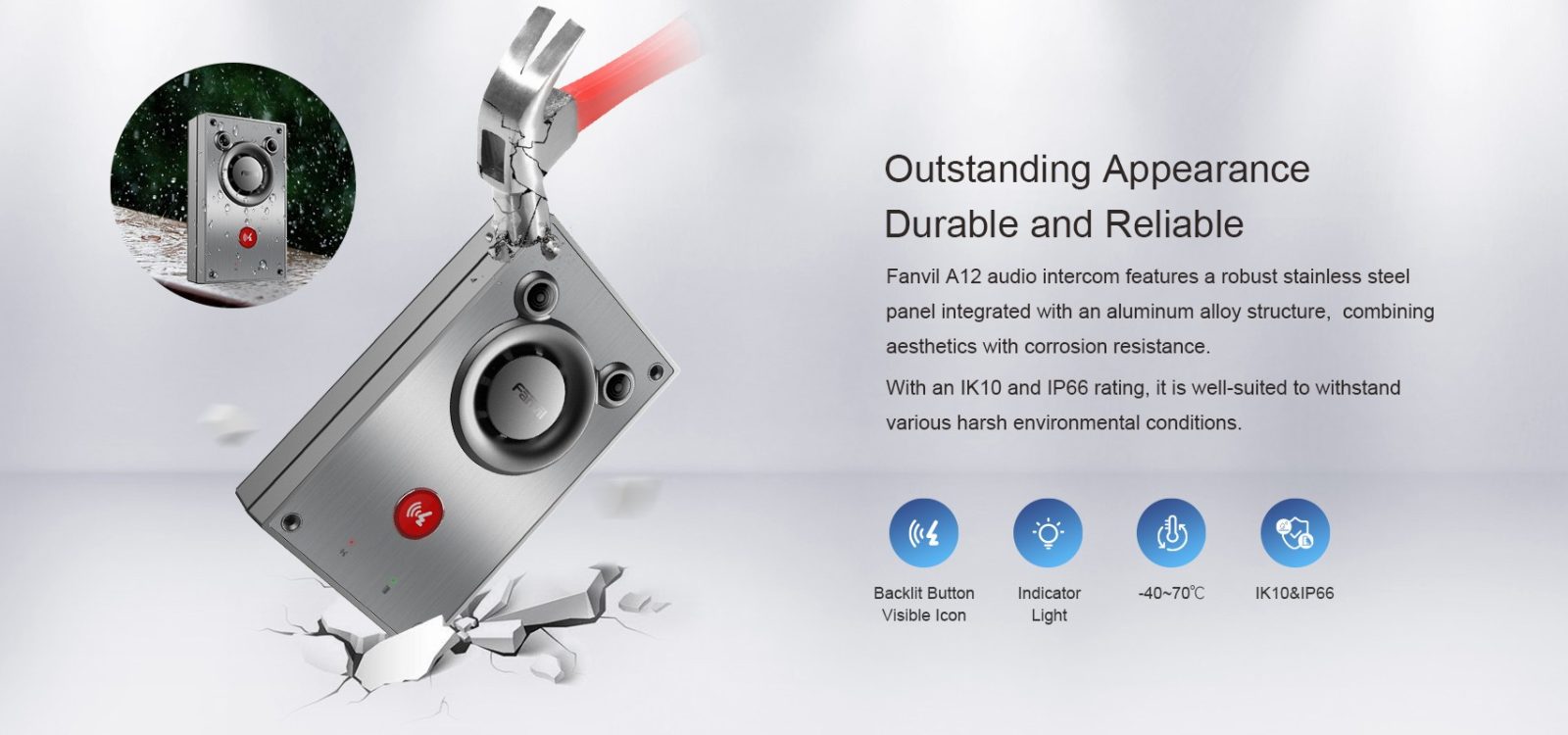

• Stainless steel panel with aluminum alloy structure, beautiful corrosion resistance, up to IK10 anti-riot standard.
• IP66 waterproof and dustproof grade.
• 27mm backlit big button, dual status indicator (call, control), intuitive easy operation.
• Compatible with SIP-based mainstream IP PBX/ softswitch /IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.
• Alarm light: Built-in 1 wet node output, can drive external alarm light.

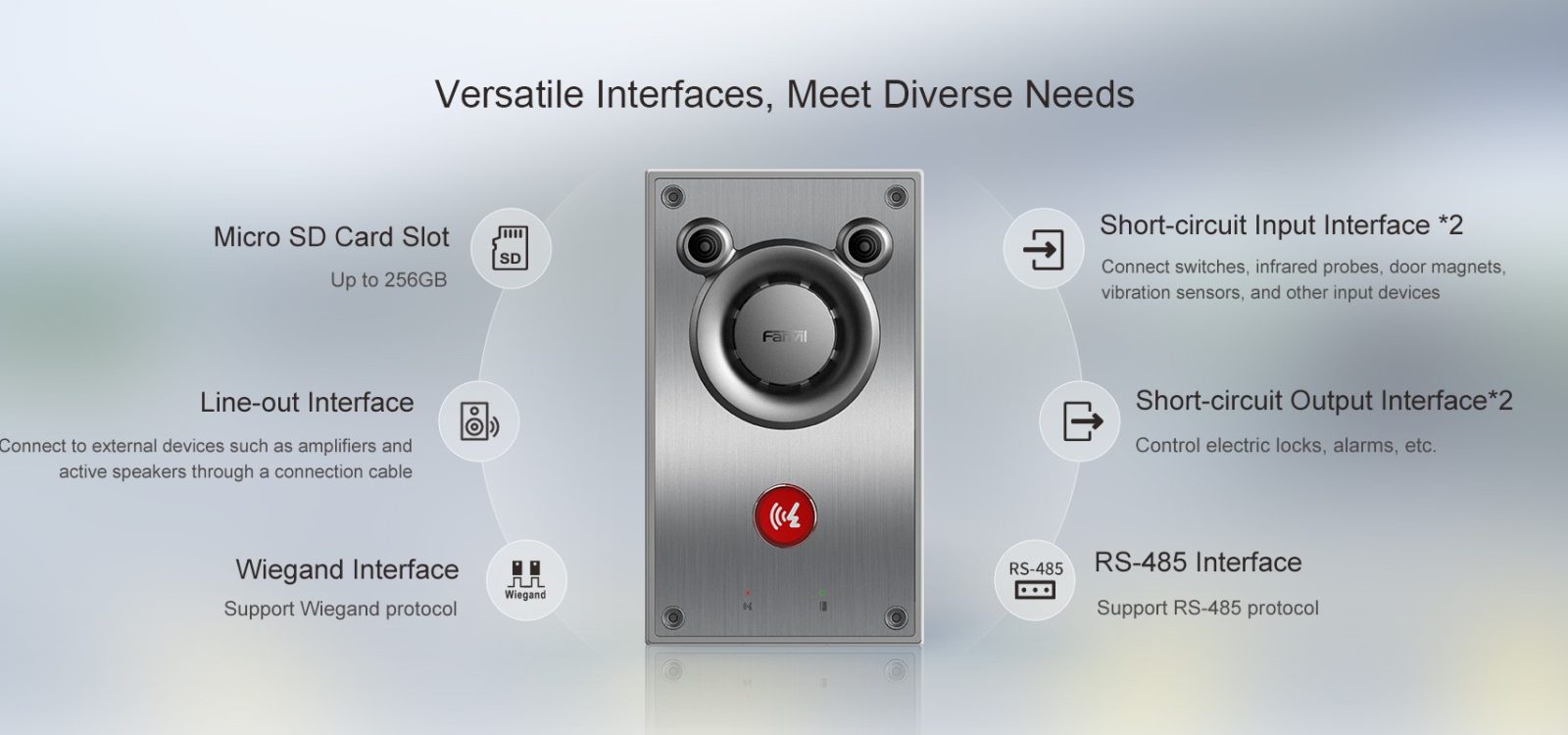

• Audio line output, short circuit input/output, Wiegand, USB, RS485, to meet diverse need
• Flush mount kit, option available  - See EX612 -Sold Separately
• Dimensions – 205mm x 120mm x 47 mm
• Weight 1.5Kg
