Fanvil i66 Facial Recognition Door Phone

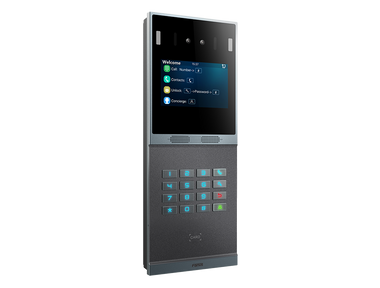

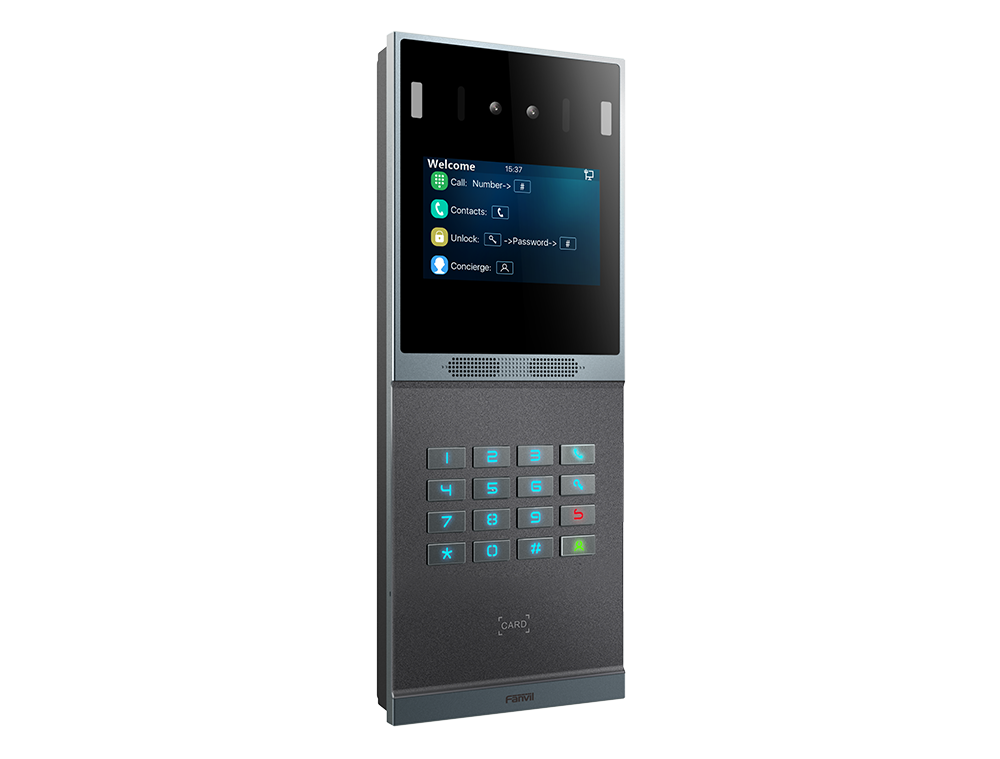

i66 Fanvil Face Recognition Door Phone

The i66 face recognition door phone is equipped with a 4-inch IPS color screen and incorporates high-precision face recognition technology. It features anti-spoofing liveness detection for images, videos, and masks, maximizing community security. Additionally, it supports audio and video communication with IP phones, indoor stations, or via a mobile app. With multiple door opening methods, it is widely applicable in community, apartment, and office building scenarios.

i66 Data Sheet

i66 Quick Start Guide

i66 User Guide

Features:

• 4 inch 800×480 pixel colour screen
• High protection level of IP66 and IK07
• Wide temperature range from -40℃ to 70℃
• Door Entry with face recognition, RFID card, password and remote door opening
• Built-in 2 Mega-pixel wide angle camera
• Built-in 3 short circuit input ports and 2 short circuit output ports
• Compatible with ONVIF protocol

Specifications:

Panel Type: Multi-apartment，Community，Hotel
Screen/Keyboard: 4-inch 800×480 Color Screen/12 Numeric Keys+4 Function Keys
Body: Aluminum
Colours: Gunmetal
Sensor: 1/2.8-inch
Camera: 2 Mpx ×2 (Automatic lighting)
Viewing Angle: 62°(Horizontal) 37.4°(Vertical)
Output video: H.264 (Baseline,Main Profile)
Light Sensitivity: 0.1Lux  (Infrared/White light fill light)

Card Storage:1,0000
Face Storage:1,0000
Power Consumption:  PoE: 7.7~19.8W / Adapter: 6.3~18.5W
Power Supply: DC 12V / 2A (If not using POE+)/POE 802.3at Class 4
Working Temperature: -40℃~+60℃
Storage temperature: -40℃~+70℃
Size of the Panel: 300×115.6×33.2mm
IP / IK Level: IP66 / IK07
Installation: Wall-mounted / Flush-mounted(Need to Purchase Accessories Separately：EX103)

Functional Capabilities:

Supported Protocols: SIP 2.0 over UDP/TCP/TLS
Lock Opening: Face Recognition，IC/ID Card，PIN Code
QR Code，By DTMF Code，Remote door opening
Interface: Wiegand Input/Output / Short Circuit Input/Output / RS485 (Reserve)
Supported Wiegand: 26, 34 bit
Supported ONVIF Types: Profile S
Supported Standards: Mifare Classic 1K/4K，Mifare DESFire，Mifare Ultralight，Mifare Plus, Cards 13.56 MHz，Cards 125 kHz
Talking Mode: Full duplex (High-definition Audio)
Additionally: Built-in relay，Open API，Motion detection，Tamper Alarm (gravity sensing)，Smart noise reduction
